AUTOMATED PILOT PARKING SYSTEM (APPS)

APPS Automated Pilot Parking System

REVOLUTIONIZING AUTOMATION
FOR PILOTS AND AIRPORTS

The new Automated Pilot Parking System (APPS) will be a new automation system used to remotely help guide pilots into their assigned gate during the parking process. The system will be composed of multiple subsystems. Each of these subsystems will work in unison to help perform, monitor, and maintain APPS. The system will be constantly monitoring the gate and will provide video playback options when intrusions are detected. The video feed of each gate will be available remotely to allow admin users to make decisions on whether an intrusion bypass is acceptable to allow the pilot to continue driving into their parking position at the gate.

How APPS Works:

APPS combines advanced technologies into a cohesive system that supports pilots, ground crews, and administrators.

1. Vision Monitoring System

  • Identifies aircraft type upon gate entry to confirm alignment with Tower information.

  • Captures real-time video for redundancy and intrusion assessment.

  • Configures center lines and stop bars using point-cloud modeling.

2. Laser-Based Monitoring System

  • Employs laser sensors to monitor gate perimeters and guide aircraft.

  • Calculates precise distance to the stop bar and offsets from the center line.

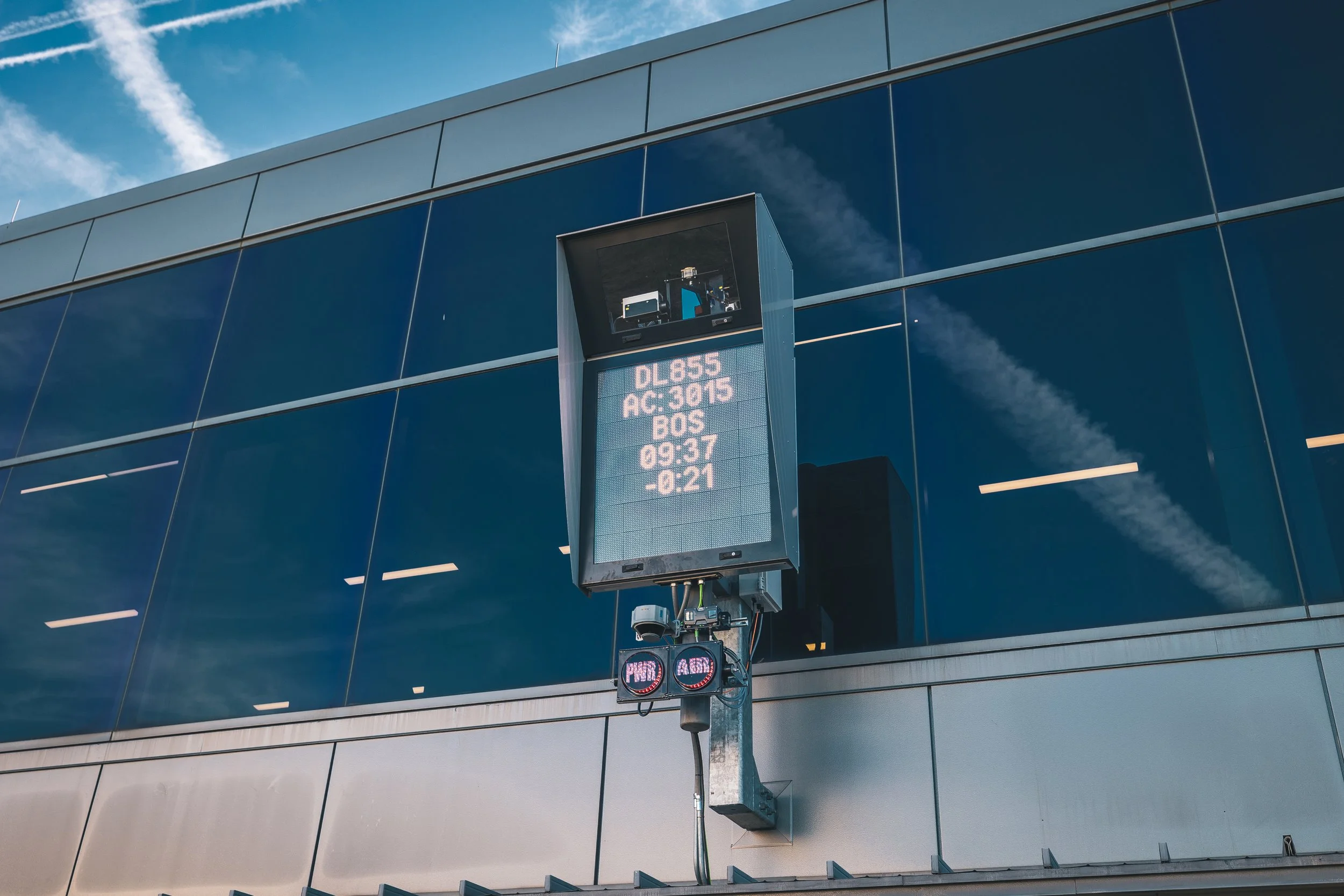

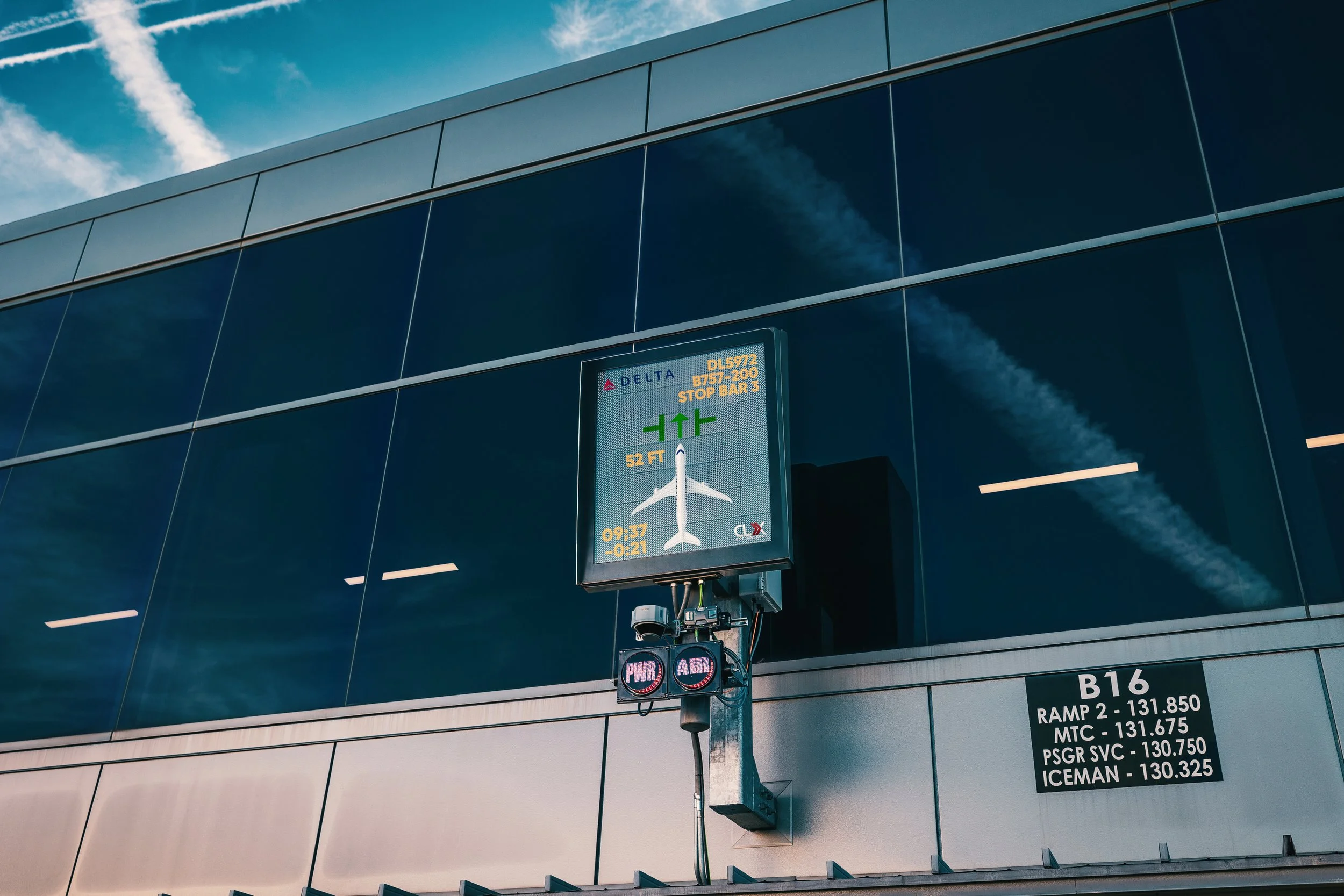

3. Pilot Display

  • Provides pilots with real-time feedback on their alignment and distance to the stop bar.

  • Displays gate status for ground crews, ensuring seamless communication.

4. Below Deck Groundcrew HMI

  • Delivers gate status updates and allows ground crews to bypass or resolve faults.

  • Ensures synchronized communication between ground crews and pilots.

5. Remote Maintenance Software Tool

  • Configures and monitors individual gates, including aircraft types and gate perimeters.

  • Allows remote access to ground crew functions for enhanced operational flexibility.

6. APPS Web Interface Monitoring Tool

  • Enables airport-wide monitoring for administrators.

  • Offers playback of recorded parking sequences and gate history.

  • Provides centralized control to update Pilot Display messages during weather disruptions or gate maintenance.

Autonomous Passenger Boarding Bridge

FAQs FOR AUTOMATED PILOT PARKING SYSTEM
(APPS)

  • APPS (Automated Pilot Parking System) is an advanced automation system designed to guide pilots into their assigned gate safely and accurately during the parking process. It enhances operational efficiency by integrating multiple subsystems for real-time monitoring, precision guidance, and remote access, reducing delays and ensuring optimal safety.

  • APPS uses a combination of Vision Monitoring and Laser-Based Monitoring Systems to detect intrusions. If an intrusion is detected, the system records the event and provides video playback options. Administrators and ground crews can assess the intrusion remotely and decide whether to bypass it, allowing the pilot to continue the parking sequence.

  • Yes, APPS offers remote monitoring capabilities through its Remote Maintenance Software Tool and Web Interface Monitoring Tool. The Remote Maintenance Tool allows users to manage individual gates, while the Web Interface Tool provides airport-wide monitoring, playback of parking sequences, and access to gate history.

  • If APPS detects a fault or issue, the system alerts both the pilot (via the Pilot Display) and the ground crew (via the Below Deck Groundcrew HMI). Ground crews can clear or bypass the fault using the HMI or Remote Maintenance Tool, ensuring minimal disruption to the parking process.

  • APPS is highly adaptable, allowing users to configure center lines, stop bars, and gate perimeters for various aircraft types using the Remote Maintenance Software Tool. During inclement weather, administrators can update the verbiage on all Pilot Displays through the Web Interface Tool, ensuring clear communication tailored to the situation.

WHY CHOOSE APPS BY CLX ENGINEERING?

CLX Engineering Autonomous Passenger Boarding Bridge

  1. Enhanced Precision: Seamlessly guides pilots into assigned gates with pinpoint accuracy.

  2. Real-Time Monitoring: Constantly monitors gate perimeters, detecting and recording any intrusions.

  3. Remote Accessibility: Administrators and ground crew can access video feeds and make decisions remotely.

HAVE QUESTIONS? LET’S TALK.

Learn how APPS can revolutionize your airport operations.
Contact us to learn more about its capabilities and schedule a demo.
